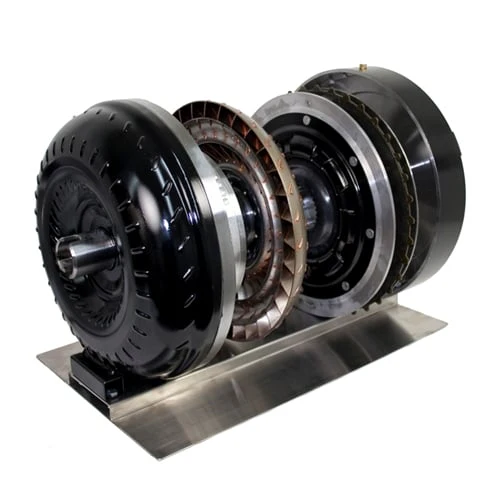

BD ProForce 3D Multi-Disc Torque Converter 94-07 Dodge 5.9L Cummins 1071217
Not all multi-disc converters are created equal...
...and with BD's ProForce 3D, less is more. To start, the stamp forged cover is designed as one piece, which prevents warping, improper balancing and leakage. With this one piece cover design, BD is able to maintain the factory height, thus eliminating crowding of the pump and the possibility of premature wear.
Not stopping there, BD engineered the dampener for a better balancing by riveting it in place, eliminating welding, which can cause warping and out-of-balance. Each dampener spring is hand picked to ensure softer engagement. They also added notches to the clutch material to prevent fluid adhesion, thus ensuring that even in fluid coupling, the clutches will always have lube.
With engineered tighter tolerances and self-centering 36-external / 32-internal trapezoid-shaped clutch teeth which are designed to enable more contact surface to ensure the clutch plates properly align resulting in less friction wear, longer converter life cycle and firmer drivability. The clutch plates are also precision ground flat for smooth operation and consistent wear. Not only will this converter last longer, it also has 3 times the torque holding capacity!
As with BD's original Double Clutch X-Converter, the ProForce 3D comes with BD's engineered cast stator that the fin lengths, angles and curvatures are designed to deliver a fluid coupling engine RPM transfer of up to 95% vs. 75% with stock stators. This efficiency reduces engine temperature, increases fuel economy, and better matches the torque curve of the engine resulting in more torque and horsepower being delivered to the ground.
Further to all of our enhancements, we were able to reduce the overall weight of our converter by 12lbs compared to our competitors thus resulting in better fuel economy, less wear and tear, and, overall superior customer satisfaction.
IMPORTANT NOTES:- Warranty: 36-Month / 150,000 mile limited
- Billet Input Shaft recommended for high torque engines.
Original: $1,624.95
-70%$1,624.95
$487.48
Description
Not all multi-disc converters are created equal...
...and with BD's ProForce 3D, less is more. To start, the stamp forged cover is designed as one piece, which prevents warping, improper balancing and leakage. With this one piece cover design, BD is able to maintain the factory height, thus eliminating crowding of the pump and the possibility of premature wear.
Not stopping there, BD engineered the dampener for a better balancing by riveting it in place, eliminating welding, which can cause warping and out-of-balance. Each dampener spring is hand picked to ensure softer engagement. They also added notches to the clutch material to prevent fluid adhesion, thus ensuring that even in fluid coupling, the clutches will always have lube.
With engineered tighter tolerances and self-centering 36-external / 32-internal trapezoid-shaped clutch teeth which are designed to enable more contact surface to ensure the clutch plates properly align resulting in less friction wear, longer converter life cycle and firmer drivability. The clutch plates are also precision ground flat for smooth operation and consistent wear. Not only will this converter last longer, it also has 3 times the torque holding capacity!
As with BD's original Double Clutch X-Converter, the ProForce 3D comes with BD's engineered cast stator that the fin lengths, angles and curvatures are designed to deliver a fluid coupling engine RPM transfer of up to 95% vs. 75% with stock stators. This efficiency reduces engine temperature, increases fuel economy, and better matches the torque curve of the engine resulting in more torque and horsepower being delivered to the ground.
Further to all of our enhancements, we were able to reduce the overall weight of our converter by 12lbs compared to our competitors thus resulting in better fuel economy, less wear and tear, and, overall superior customer satisfaction.
IMPORTANT NOTES:- Warranty: 36-Month / 150,000 mile limited
- Billet Input Shaft recommended for high torque engines.
