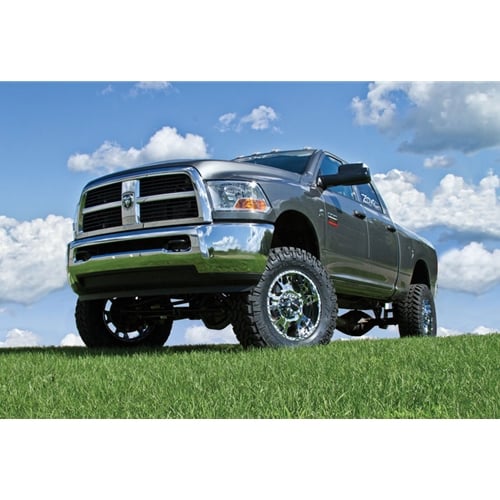

Zone Offroad 6" Suspension System 09-13 Ram 2500 / 09-12 Ram 3500 Cummins
Bring your Ram to new heights with this massive 6" suspension system from Zone! This Zone Offroad 6" suspension system is performance packed and budget friendly for those looking to get 37" tires under their HD Dodge truck. The lift uses a unique control arm relocation design. Both the stock upper and lower arms are relocated to relieve angles, properly position the front axle and provide good caster and front pinion angle settings. The 1/4" steel constructed relocation brackets mount directly to stock locations and only require a few new holes to be drilled for extra support. No cutting of the frame or axle mounts is required. Stock alignment adjustability is retained. Stock control arm angles are maintained to provide a great ride, handling and control.

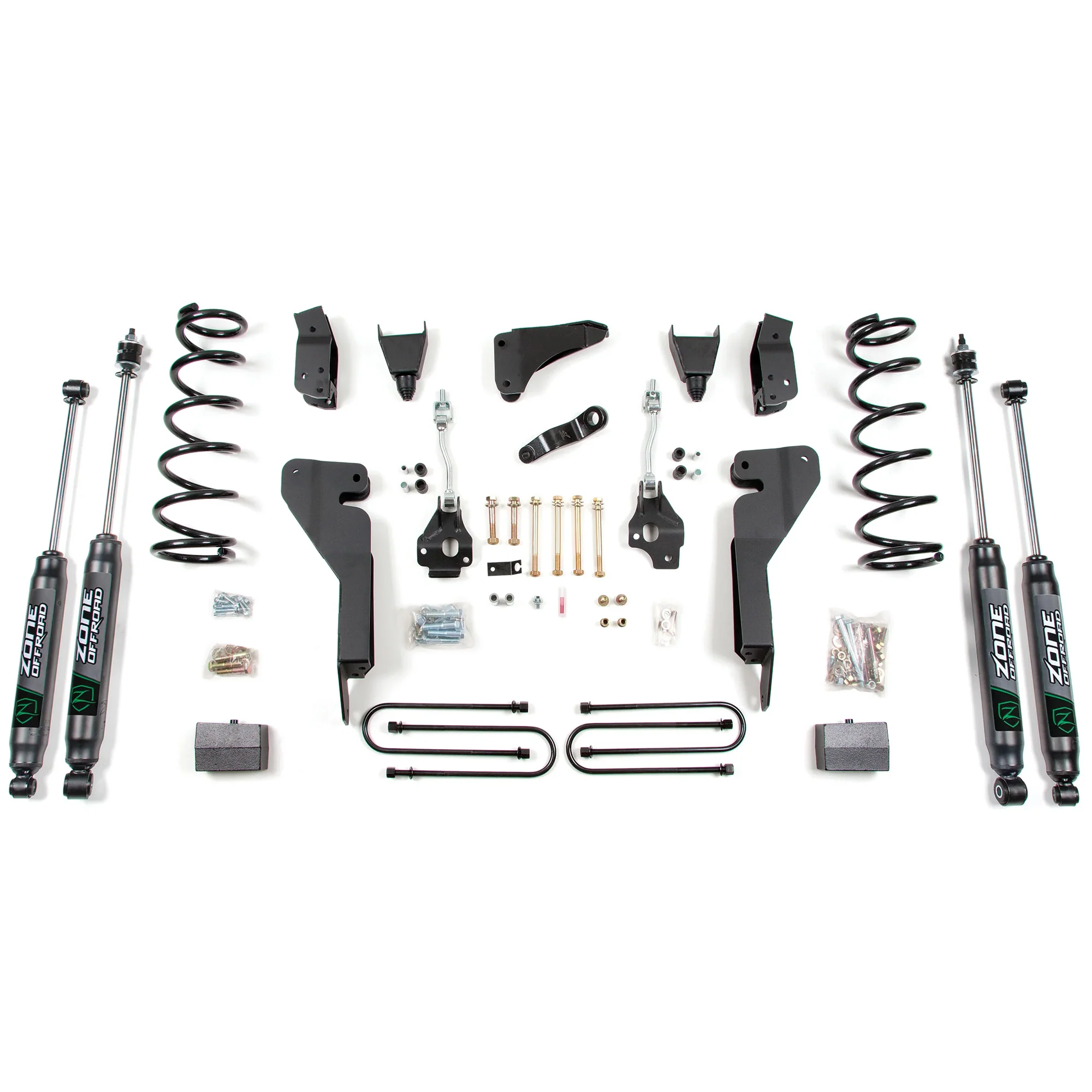

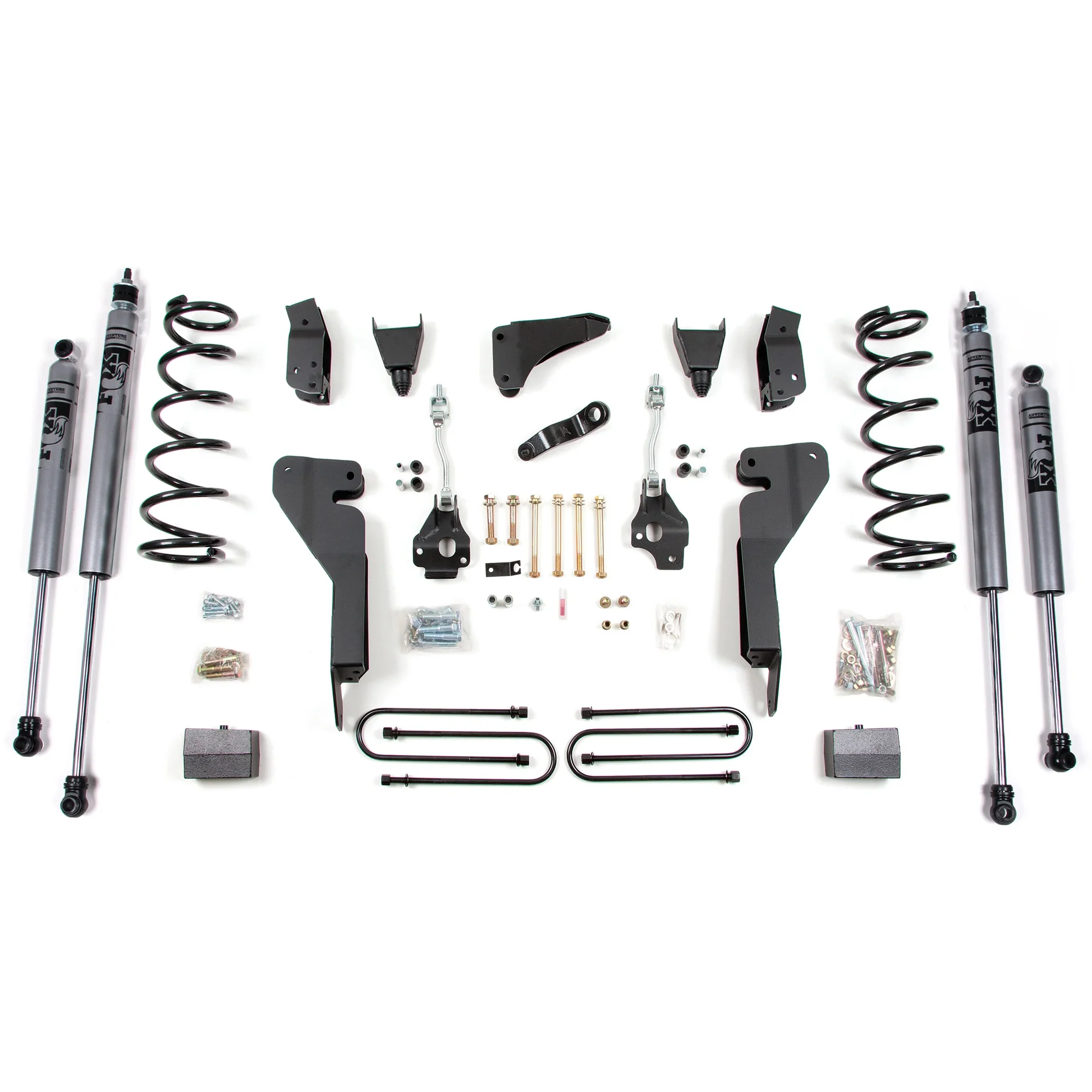

In addition to the control arm brackets, all the necessary additional components are included. Full-length coil springs, dropped pitman arm, track bar relocation, sway bar relocation and bump stops are included. The rear kits feature new lift blocks and u-bolts. A rear carrier bearing drop kit is available also for trucks featuring a stock 2-piece rear driveshaft.
Original: $1,168.60
-70%$1,168.60
$350.58
Description
Bring your Ram to new heights with this massive 6" suspension system from Zone! This Zone Offroad 6" suspension system is performance packed and budget friendly for those looking to get 37" tires under their HD Dodge truck. The lift uses a unique control arm relocation design. Both the stock upper and lower arms are relocated to relieve angles, properly position the front axle and provide good caster and front pinion angle settings. The 1/4" steel constructed relocation brackets mount directly to stock locations and only require a few new holes to be drilled for extra support. No cutting of the frame or axle mounts is required. Stock alignment adjustability is retained. Stock control arm angles are maintained to provide a great ride, handling and control.
In addition to the control arm brackets, all the necessary additional components are included. Full-length coil springs, dropped pitman arm, track bar relocation, sway bar relocation and bump stops are included. The rear kits feature new lift blocks and u-bolts. A rear carrier bearing drop kit is available also for trucks featuring a stock 2-piece rear driveshaft.
