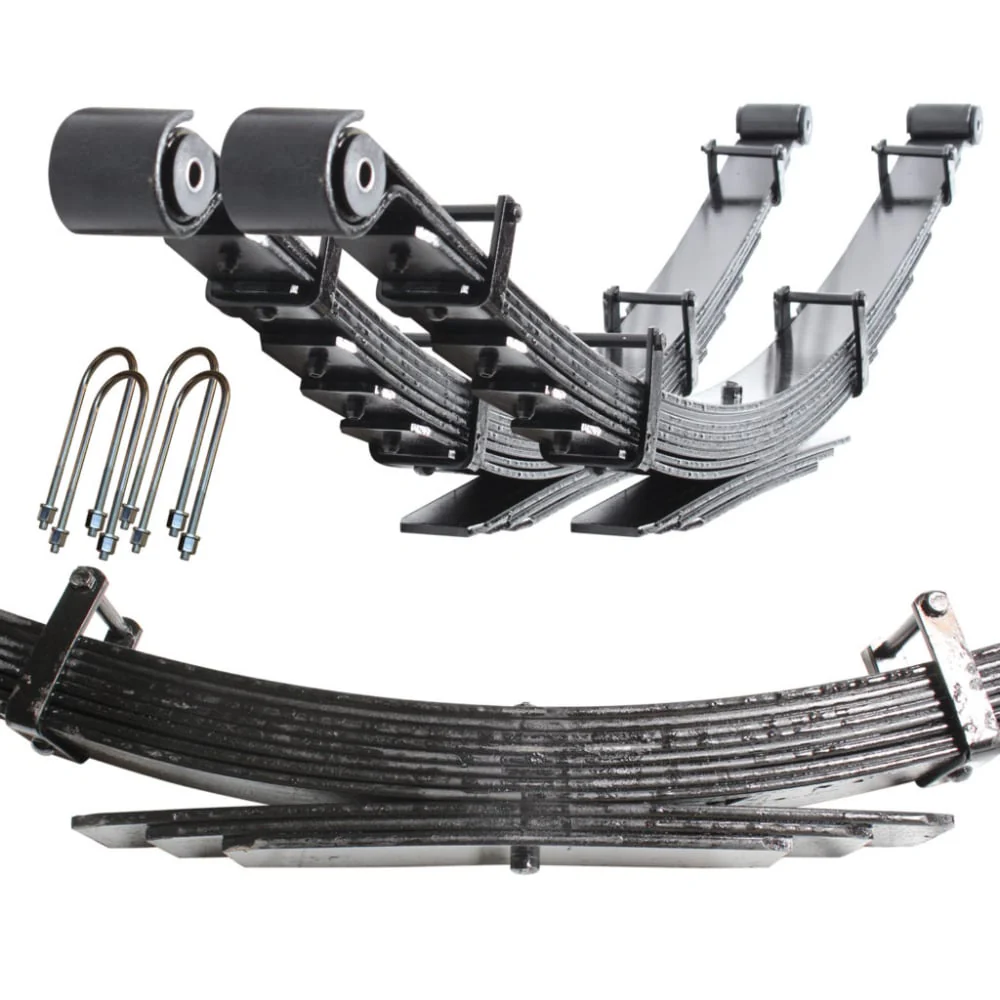

Carli 4" Rear Lift Full Replacement Progressive Leaf Spring Pack 03-09 Dodge Ram 5.9L / 6.7L Cummins
Carli 4" Rear Lift Full Replacement Progressive Leaf Spring Pack 03-09 Dodge Ram 5.9L / 6.7L Cummins
These full-length progressive spring packs are built by Deaver Spring Mfg specifically for Carli Suspension to be used in conjunction with Carli's 6" Radius Arm kits. These springs were designed as a two-stage spring pack, enabling the truck to still have an admirable weight capacity while offering smooth and comfortable street driving performance, all while not requiring a block to achieve proper ride height, eliminating axle wrap. As these kits are designed to work with a 6" lift, they will provide 4" of rear lift to properly level the vehicle.
These leaf springs were designed to carry the weight of the Dodge Ram Truck, offering a moderate load capacity, while producing a smoother, more comfortable ride. This was done by changing the upper rate of the spring pack, thus allowing full control of the rate from the top to the bottom. So as the spring progresses, the rate increases. When a load is applied the spring rate will increase as it compresses onto the secondary bottom stack of the spring pack. This was built in to reduce any additional squats or sag under heavy load. The upper rates are much lower than the factory to give an improved ride quality for daily driving, especially freeway expansion joints.
The main leaf was designed a set distance longer, which moved the truck's shackle position back. This gives almost a zero rate effect on the freeway when empty. When you move the shackle position back, it eases the first movement for the axle, rendering smoother travel.
SPRING PACK WEIGHT CARRYING AND SQUAT
The big question is how much will the full spring pack squat under load... due to the fact that the upper leafs are a lighter weight, the suspension will squat more than O.E.M. or with the 5 leaf add-a-pack. The full spring pack will carry the same load, however it has more lighter weight progressive leafs, which means you will have to drop farther into the pack in order to get to the higher spring rates.
IMPORTANT SHIPPING NOTICE
- Due to the size and weight of this product, it must be shipped via truck freight on a pallet and we must charge shipping. Please note we do not make a penny on the shipping, we are still losing money on it based upon the prices we are charging, but simply cannot ship this item free of charge.
